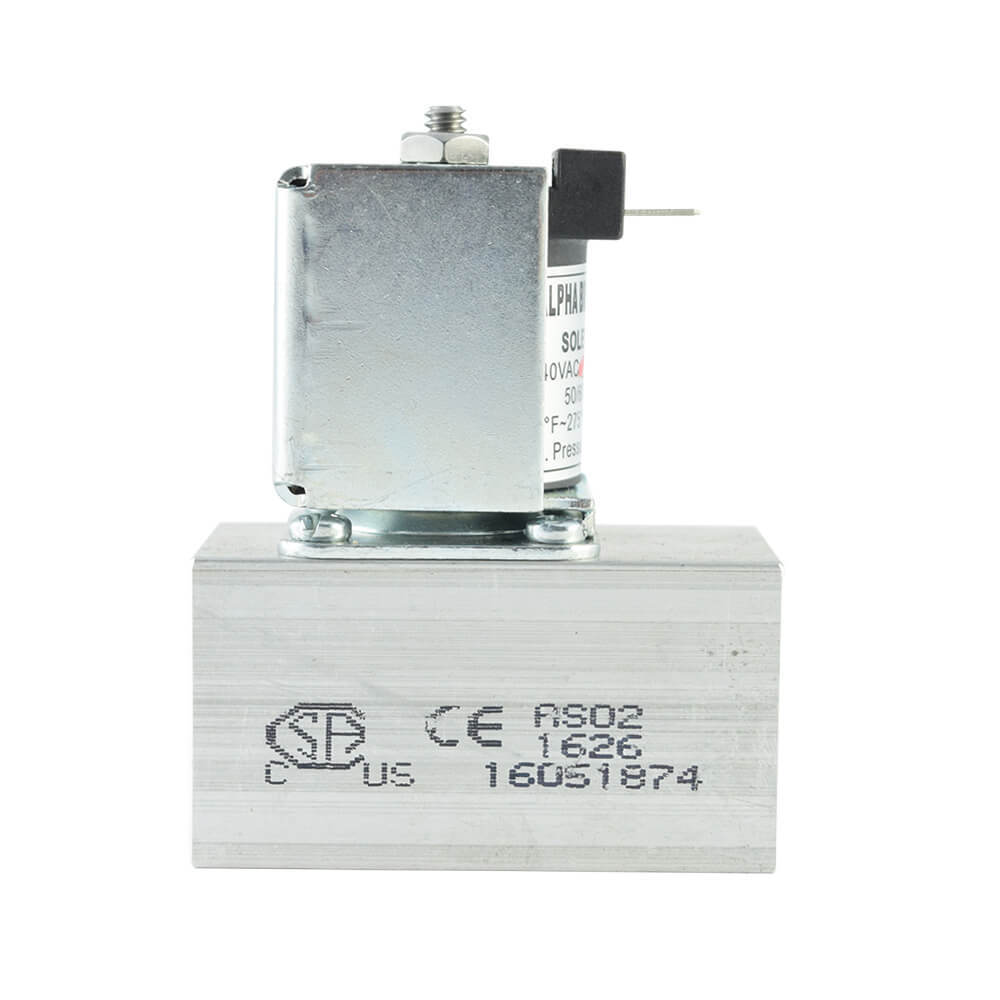

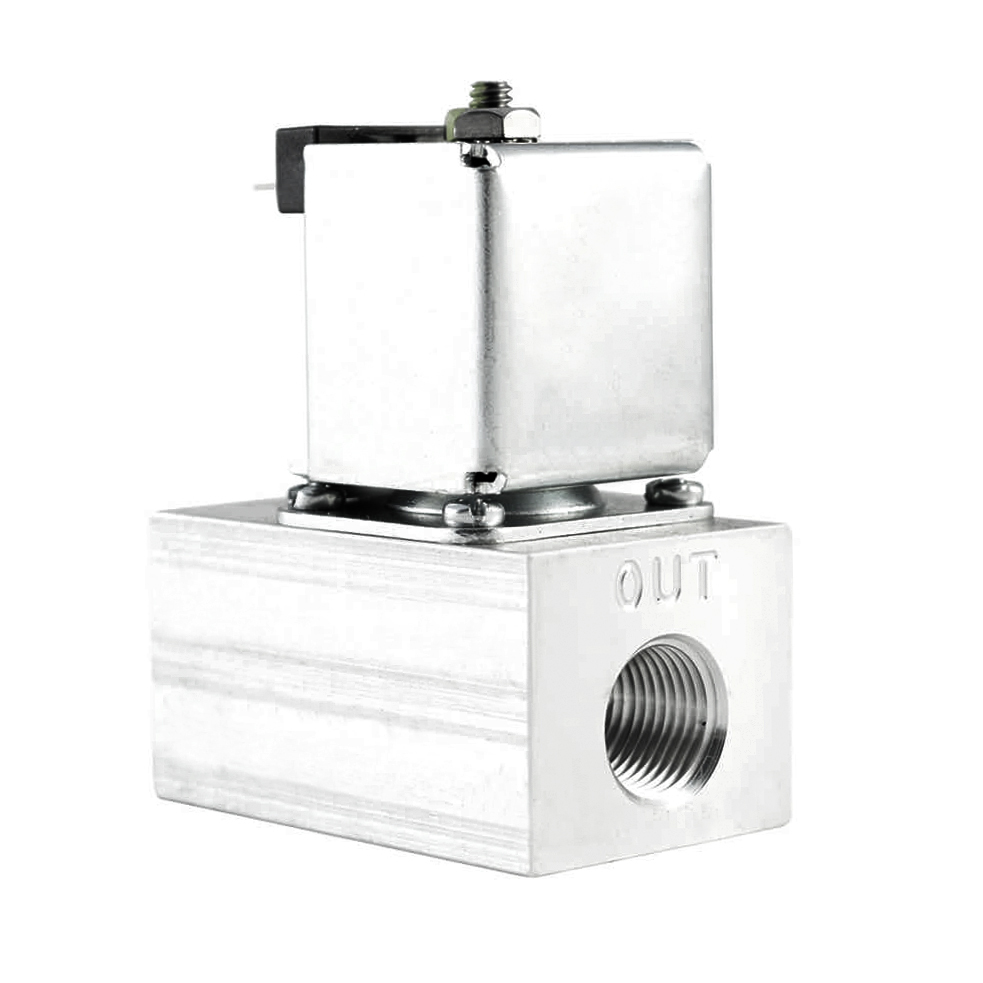

AS02 Single Gas Solenoid Valve
- Heating & Thermal Cooking Equipment
- Kitchen Systems (temperature control, freshness monitoring, etc.)
- Pizza Ovens, Pizza Forming Machines
- Food Service Equipment Others
-
Target Sector
Commercial cooking equipment industry
Gas appliance components sector
Global gas parts supply chain
Liquid coolant systems industry
Professional kitchen equipment manufacturing -
Specialities,Sales point
Features
● Solenoid in "normally closed" position.
● Compact size is easy to install, multiple inlet/outlet directions applicable to various structures.
● High flow rate is applicable to ovens, griddles and fryers.
● Universal NEMA terminals.
● Inlet filtered with stainless seal mesh.
● AC rectification for silent operation.
- Export Available - - Countries of Trade
JAPAN ： Both direct and indirect transactions are acceptable
Others ： Both direct and indirect transactions are acceptable

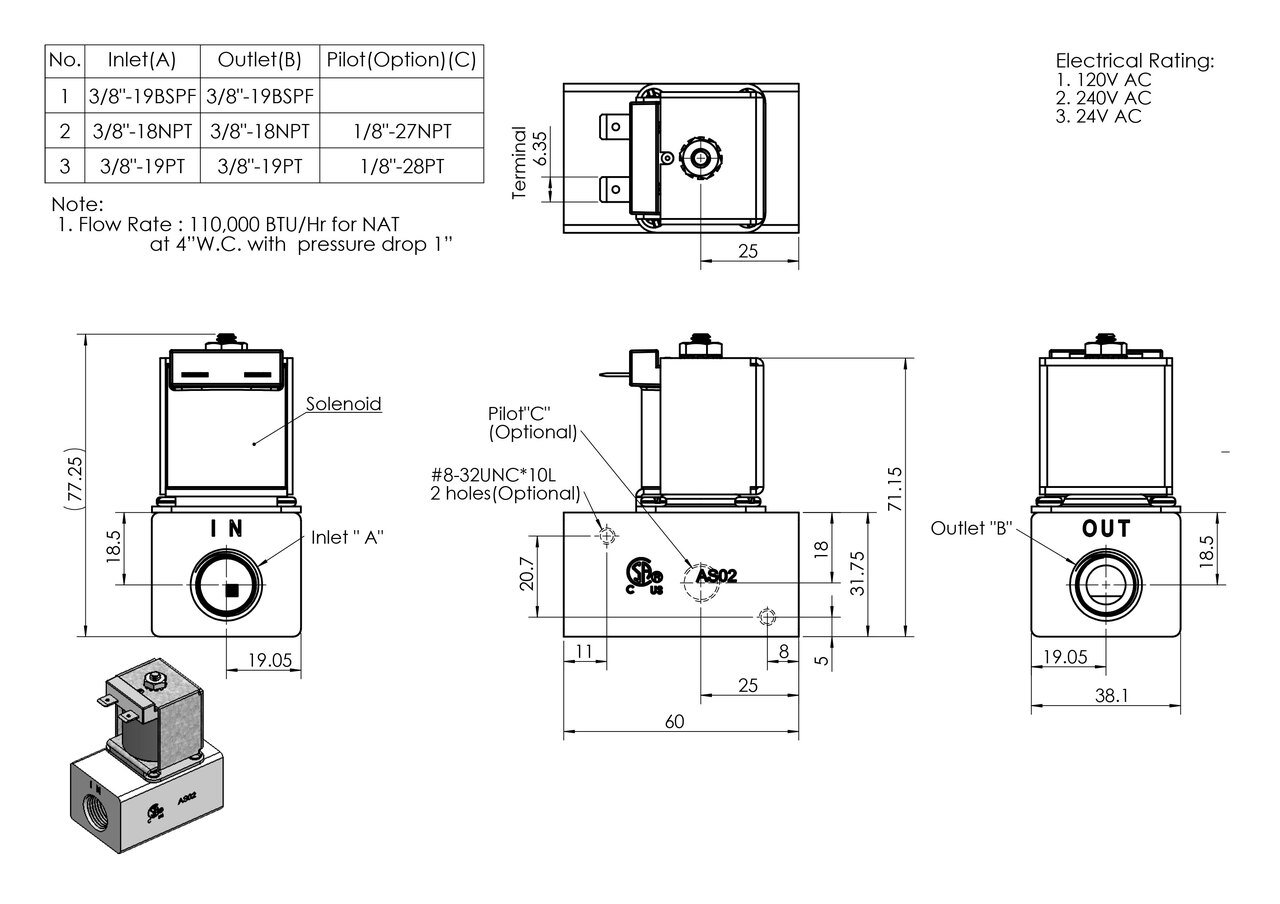

| Size / capacity | Specifications ● Inlet/Outlet : 3/8"-18NPT or 3/8"-19PT or 1/8"-27NPT or 1/2"-14NPT ● Pilot Outlet (Optional) : 1/8"-27NPT ● Electrical Rating : 24VAC or 110/120VAC or 220/240VAC240V AC 50/60 Hz ● Max. operation pressure : 65mbar or 1/2PSI ● Ambient temperature : -20°C~125°C (257°F) |
|---|---|
| Special Remarks | BTU 110,000 KW 32 MJ 116 |
| Catalog PDF file |
Alpha Brass Controls
https://www.alphabrass.com/- Overseas exhibitors
- Exportable
- HCJ 2026
- Food Service Equipment
- Booth number E4-T01
| Exhibited products | AJ02 - Safety Valve with Pilot, APV01 - Proportional Gas Valve, A64T - Combination Gas Thermostat, AS02 - Single Gas Solenoid Valve, ET series |
|---|
