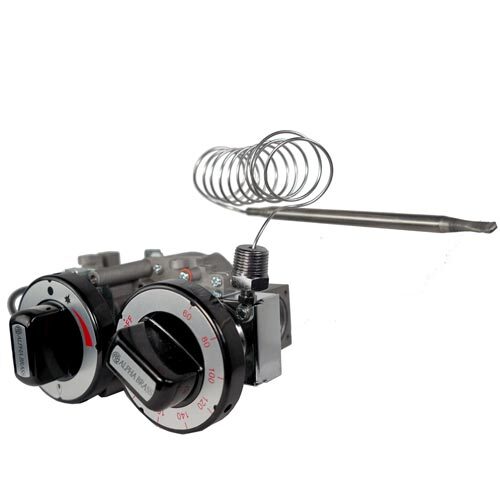

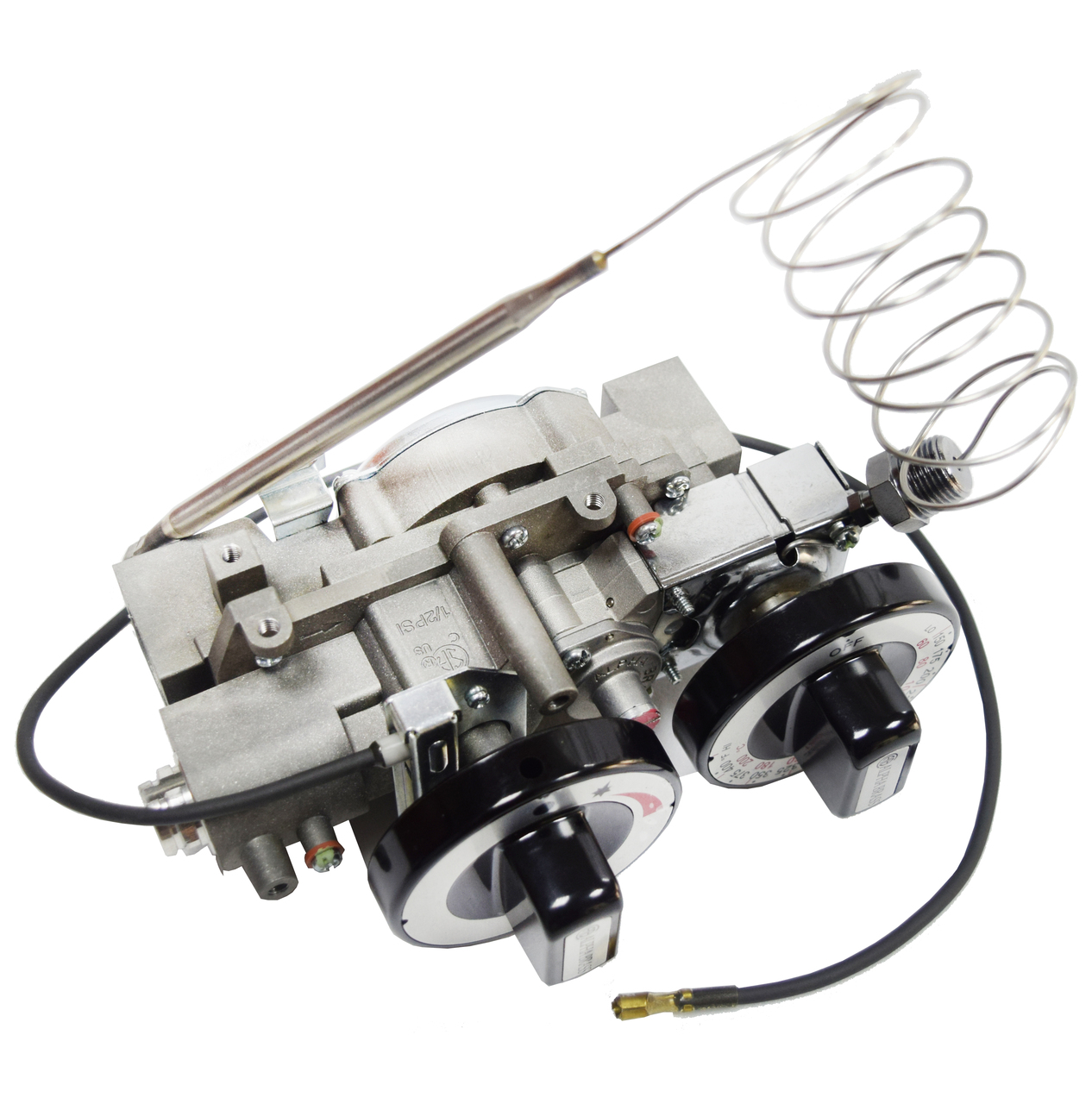

A64T Combination Gas Snap-Action Thermostat
- Heating & Thermal Cooking Equipment
- Kitchen Systems (temperature control, freshness monitoring, etc.)
- Pizza Ovens, Pizza Forming Machines
- Food Service Equipment Others
-
Target Sector
Commercial cooking equipment industry
Gas appliance components sector
Global gas parts supply chain
Liquid coolant systems industry
Professional kitchen equipment manufacturing -
Specialities,Sales point
Features
● Multi-functions all in one design: mechanical ignition, flame failure device, temperature control and pressure regulator, exposed dual knob design is easy to operate and conforms to EU new regulation.
● One inlet and one outlet design is easy operation and minimize gas leakage risk.
● Easy installation and maintenance.
● Snap-acting mechanism is designed for rapid heating.
- Export Available - - Countries of Trade
JAPAN ： Both direct and indirect transactions are acceptable
Others ： Both direct and indirect transactions are acceptable

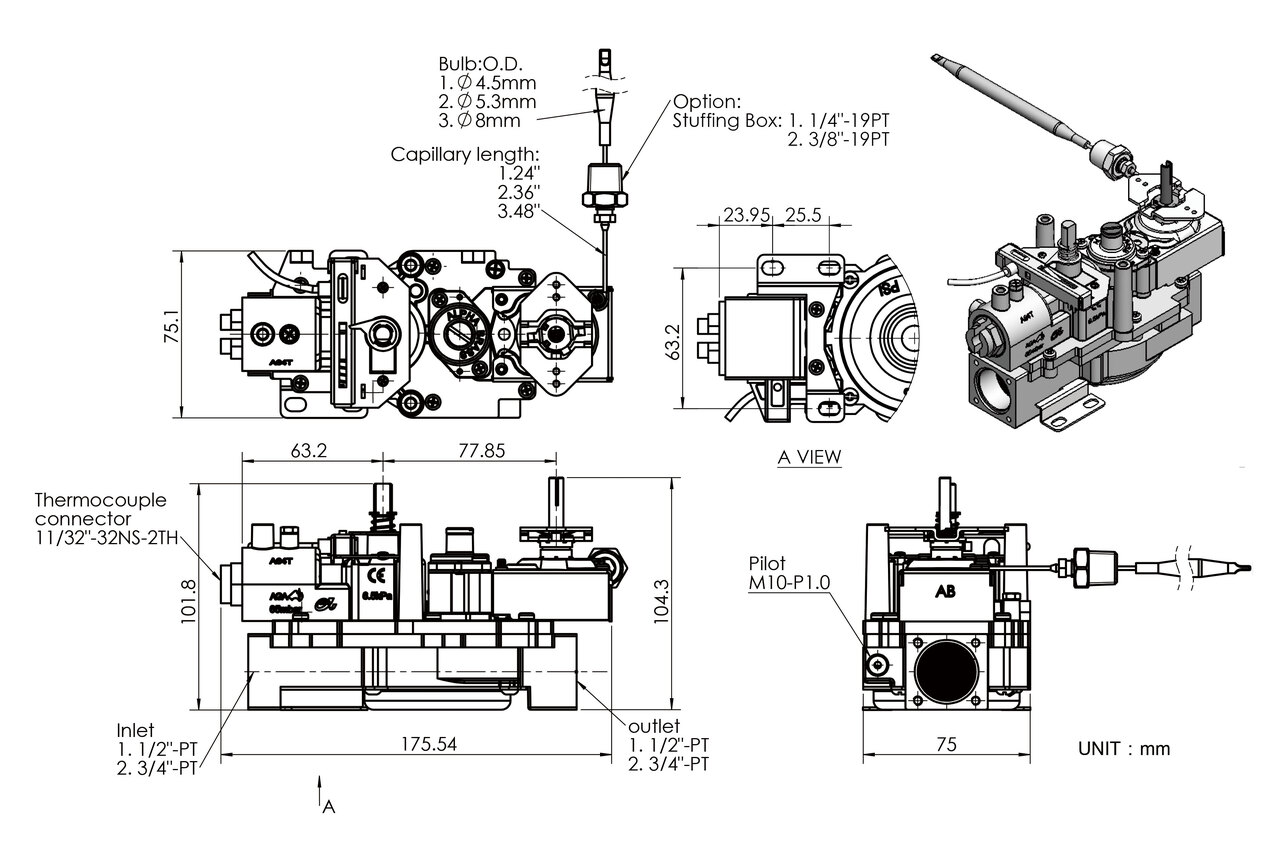

| Size / capacity | Specifications ● Inlet&Outlet/Pilot Outlet : 1/2"-14NPT/1/8"-27NPT or 3/4"-14NPT/ 1/8"-27NPT or 3/4"-14PT/M10 or 1/2''PT-14PT/M10 ● Bulb diameter : Ø4.5, Ø5.3, Ø8 mm ● Capillary length : 24", 36", 48" ● Stuffing box : None, 1/4"-18NPT, 3/8"-18NPT ● Temperature range : 60°C~200°C / 100°C~260°C / 80°C~300°C; 150°F~400°F / 200°F~500°F / 200°F~550°F |
|---|---|
| Special Remarks | ● Discharge pressure : Natural gas 3.5 "WC or 4 "WC / LPG 10 "WC / Flat plate without pressure regulation ● Max. operation pressure : 65mbar or 1/2PSI ● Ambient temperature : -20°C ~ 80°C BTU 200,000 KW 58.6 MJ 211 |
| Catalog PDF file |
Alpha Brass Controls
https://www.alphabrass.com/- Overseas exhibitors
- Exportable
- HCJ 2026
- Food Service Equipment
- Booth number E4-T01
| Exhibited products | AJ02 - Safety Valve with Pilot, APV01 - Proportional Gas Valve, A64T - Combination Gas Thermostat, AS02 - Single Gas Solenoid Valve, ET series |
|---|
