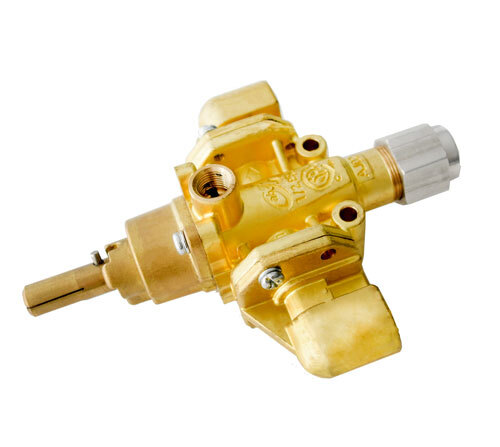

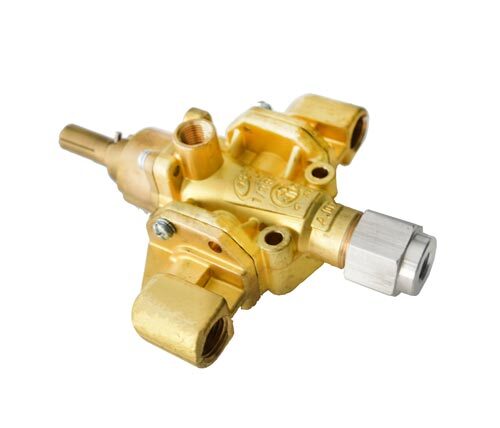

AJ02 Safety Valve with Pilot
- Heating & Thermal Cooking Equipment
- Kitchen Systems (temperature control, freshness monitoring, etc.)
- Pizza Ovens, Pizza Forming Machines
- Food Service Equipment Others
-
Target Sector
Commercial cooking equipment industry
Gas appliance components sector
Global gas parts supply chain
Liquid coolant systems industry
Professional kitchen equipment manufacturing -
Specialities,Sales point
Features
● Matching with JPC08 dual ring burner with double outlets design offers 5 tiers flame power of both inner and outer ring to satisfy the requirements for different culinary needs.
● Easy adjustment of flame power by one gas valve.
● safer with a pilot flame failure protection device.
● Japan, Taiwan, and China Patents.
● Heavy-duty forged brass construction with a sturdy and leak-proof main body.
- Export Available - - Countries of Trade
JAPAN ： Both direct and indirect transactions are acceptable
Others ： Both direct and indirect transactions are acceptable

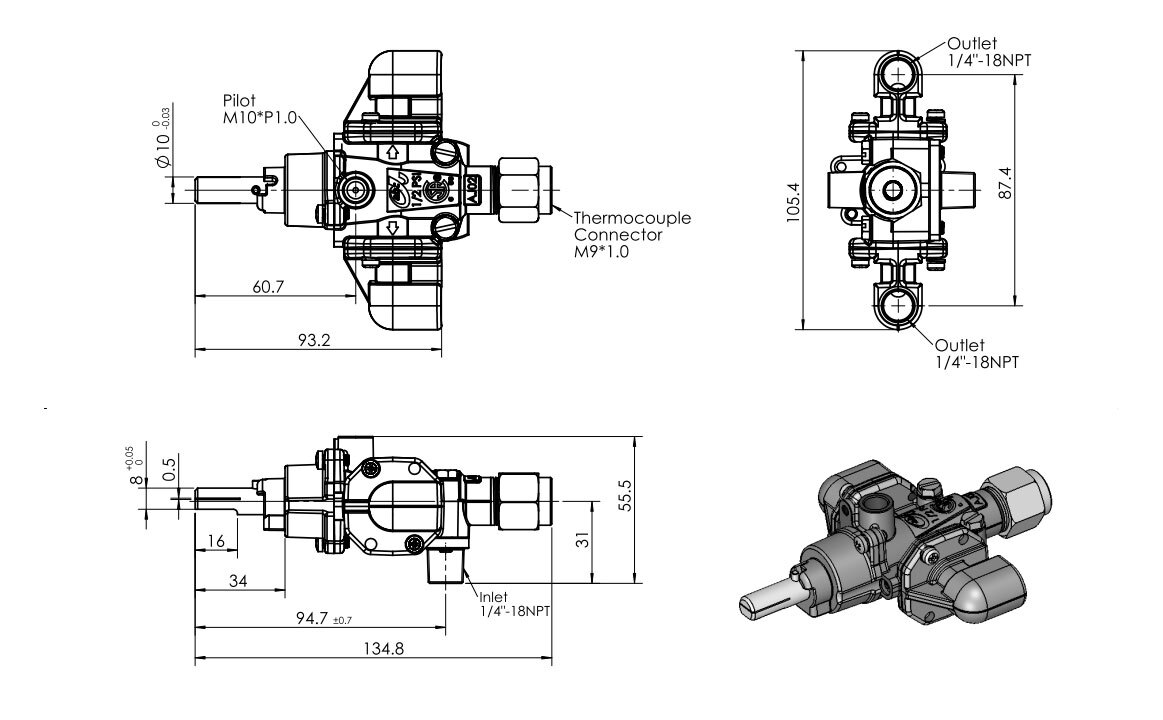

| Size / capacity | Specifications ● Inlet : 1/4"-18NPT ● Outlet : 1/4"-18NPT ● Pilot fitting : 4mm or 6mm or 1/4"CC ● Max. operation pressure : 65mbar or 1/2PSI ● Ambient temperature : 0°~125°C (257°F) |
|---|---|
| Special Remarks | BTU 70,000 KW 20.5 MJ 74 |
| Catalog PDF file |
Alpha Brass Controls
https://www.alphabrass.com/- Overseas exhibitors
- Exportable
- HCJ 2026
- Food Service Equipment
- Booth number E4-T01
| Exhibited products | AJ02 - Safety Valve with Pilot, APV01 - Proportional Gas Valve, A64T - Combination Gas Thermostat, AS02 - Single Gas Solenoid Valve, ET series |
|---|
